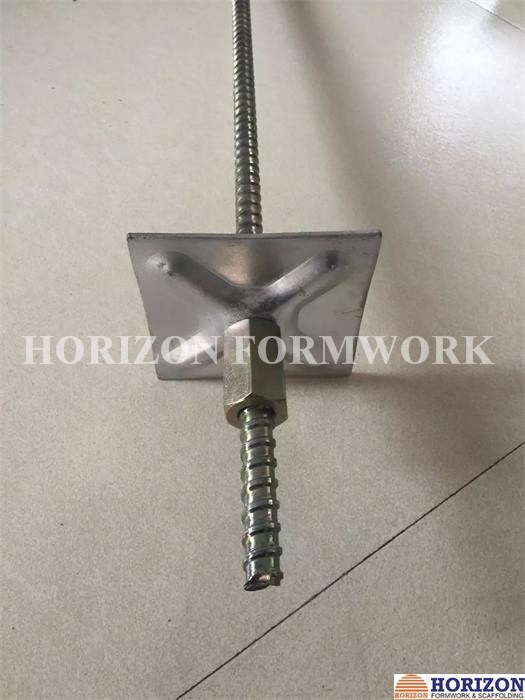

Pressed Square Waler Plate 120x120x6mm for Formwork Tie Rod Systems
Waler plate is used for timber or steel walings in conjunction with a wing nut or a hex nut for load transfer. The embossing of the plate increases its rigidity.
The pressed waler plate is a completion to the wing nut without flange. For panel formwork with steel profiles and timber wall formwork, the square plate 120 x 120 and the rectangle plate 100 x140 mm are suitable.
Load capacity depends on the contact area, the admissible bearing pressure and the thread bar that is used.
| Waler plate | Bar Ø (mm) | Plate (mm) | Hole Ø (mm) | Weight (Kg) |
 |
15 | 120 x 120 x 6 | 19 | 0.65 |
| 15 | 120 x 120 x 8 | 19 | 0.90 | |
| 15 | 120 x 120 x 10 | 19 | 1.10 | |
| 20 | 140 x 100 x 10 | 19 | 1.15 |
| Part Name | Specification | Weight (kg) | Remark |
|
Tie-rod
|
D15 D20 |
1.5 kg/m 2.7 kg/m |
L=6m; Special length available upon request. |
|
Super plate
|
D15 | 1.28 | Used in case of tie-rod and formwork panels are not vertical. |
|
3-lug wing nut
|
D15 D20 |
0.97 0.78 |
For tie-rod D15; For tie-rod D20 |
|
Waling plate
|
120 x 120 x 6, Φ19 120 x 120 x 8, Φ19 |
0.65 0.85 |
For tie-rod and nut D15; galvanized |
|
Water stopper
|
D15 D20 |
0.55 0.72 |
Used in water resistant wall; With tie-rod D15 / D20 |
|
Anchor plate
|
D20 | 0.95 | Embedded in concrete as lost part |
