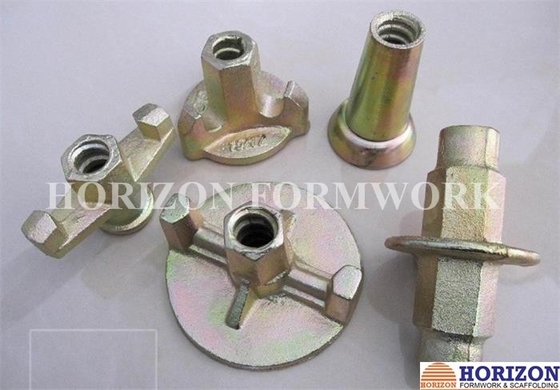

Formwork Tie Rod System of Flange Wing Nut, Water Stop, Steel Cone for Formwork
The Flanged Wing Nut is available in different diameters. With a larger pedestal, it allows a direct load bearing on walings.
It can be screwed on or loosened using a hexagon wrench, thread bar or hammer.
Steel cone is usually used in formwork tie rod system for easy removing the outer tie rod.
Formwork wing nut with flange:
| Flanged Wing nut | Bar Ø (mm) | Plate dia (mm) | Height/Hex. (mm) | Weight (Kg) |
 |
15 | 90 | 55/27 | 0.50 |
| 15 | 100 | 55/27 | 0.62 | |
| 15 | 110 | 55/27 | 0.80 | |
| 20 | 120 | 60/36 | 1.00 |
|
15 | 64 | 75/27 | 0.34 |
| 15 | 100 | 100/27 | 0.62 |
| Part Name | Specification | Weight (kg) | Remark |
|
Tie-rod
|
D15 D20 |
1.5 kg/m 2.7 kg/m |
L=6m; Special length available upon request. |
|
Super plate
|
D15 | 1.28 | Used in case of tie-rod and formwork panels are not vertical. |
|
3-lug wing nut
|
D15 D20 |
0.97 0.78 |
For tie-rod D15; For tie-rod D20 |
|
Waling plate
|
120 x 120 x 6, Φ19 120 x 120 x 8, Φ19 |
0.65 0.85 |
For tie-rod and nut D15; galvanized |
|

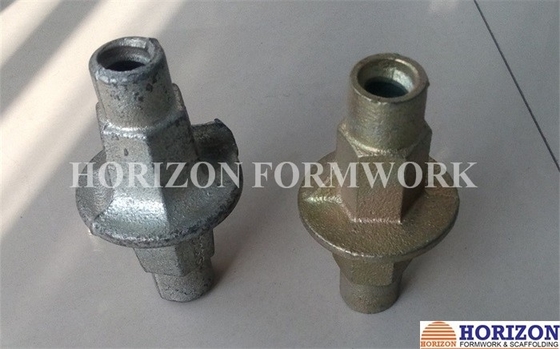

Water stopper
|
D15 D20 |
0.55 0.72 |
Used in water resistant wall; With tie-rod D15 / D20 |
|
Anchor plate
|
D20 | 0.95 | Embedded in concrete as lost part |
