| Material: | Steel Pressing | OEM: | Available |
|---|---|---|---|
| Finishing: | Galvanized, Painting | Size: | 75x110mm |
| Application: | Tensioning Formwork Tie Bar | Samples: | Available |
| Highlight: | concrete formwork accessories,concrete wall form accessories |
||

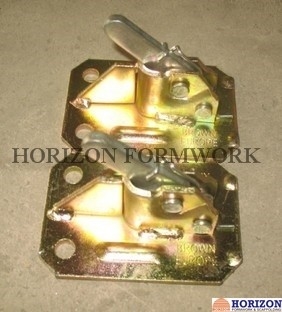

Spring Quick Clips for Tensioning Steel Wire Bar in Concrete Formwork
Spring quick clip is a fast and effective method for securing steel wire bars in light formwork applications. The tensioner tool is used to pull the wire tie bar through the clip.
Steel wire bar diameter from 5-10mm can pass through the spring clip.
Main application: bracing formwork when being used for foundations or applied to beam formwork.
Load capacity:
6mm tension bar appr. 4KN
8mm tension bar appr. 7KN
10mm tension bar appr. 11KN
| Bar Ø (mm) | Plate size (mm) | Weight (Kg) |
| 5-10 | 69 x 105 x 3 | 0.33 |
| 5-10 | 75 x 110 x 4 | 0.42 |
